Fiber Optic

Description:

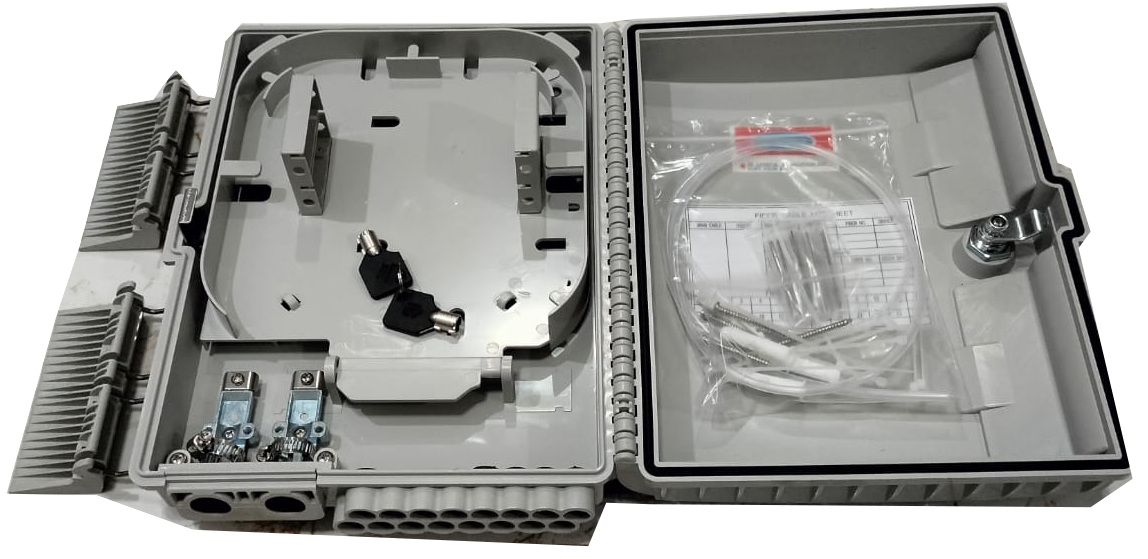

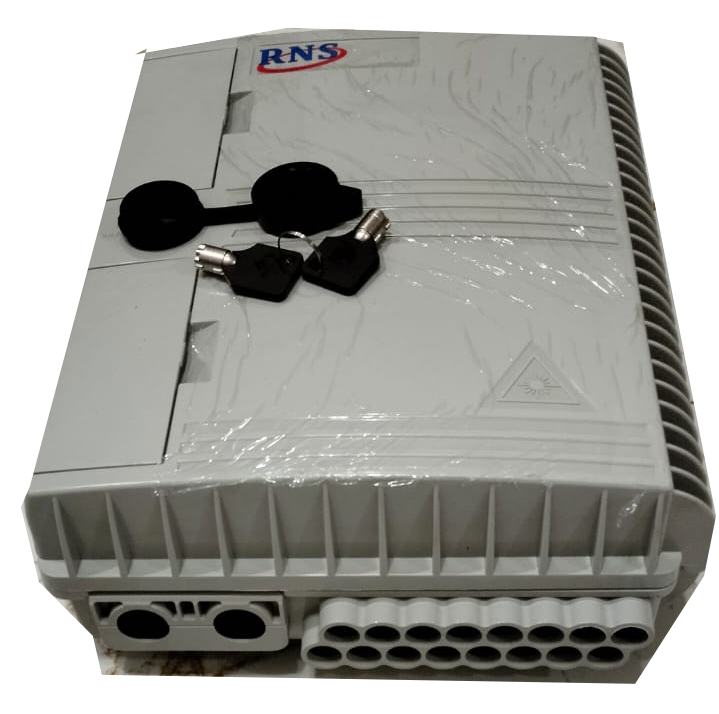

16 core fiber termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splitting, distribution, storage and cable connection in one solid protection box.

Features

• Water proof design with IP-66 protection level
• Integrated with splice cassette and cable management rods
• Manage fibers in a reasonable fiber radius condition
• Easy to maintain and extend the capacity
• Fiber bend radius control more than 40 mm
• Suitable for the fusion splice or mechanical splice
• 1 pcs of 1* 16 Splitter can be installed
• Efficient cable management
• 16 port cable entrance for drop cable
• Uncut cable port is available for choice

Gallery:



Untuk keterangan lebih detail dan penawaran harga silahkan hubungi kami

Untuk keterangan lebih detail dan penawaran harga silahkan hubungi kami

Untuk keterangan lebih detail dan penawaran harga silahkan hubungi kami

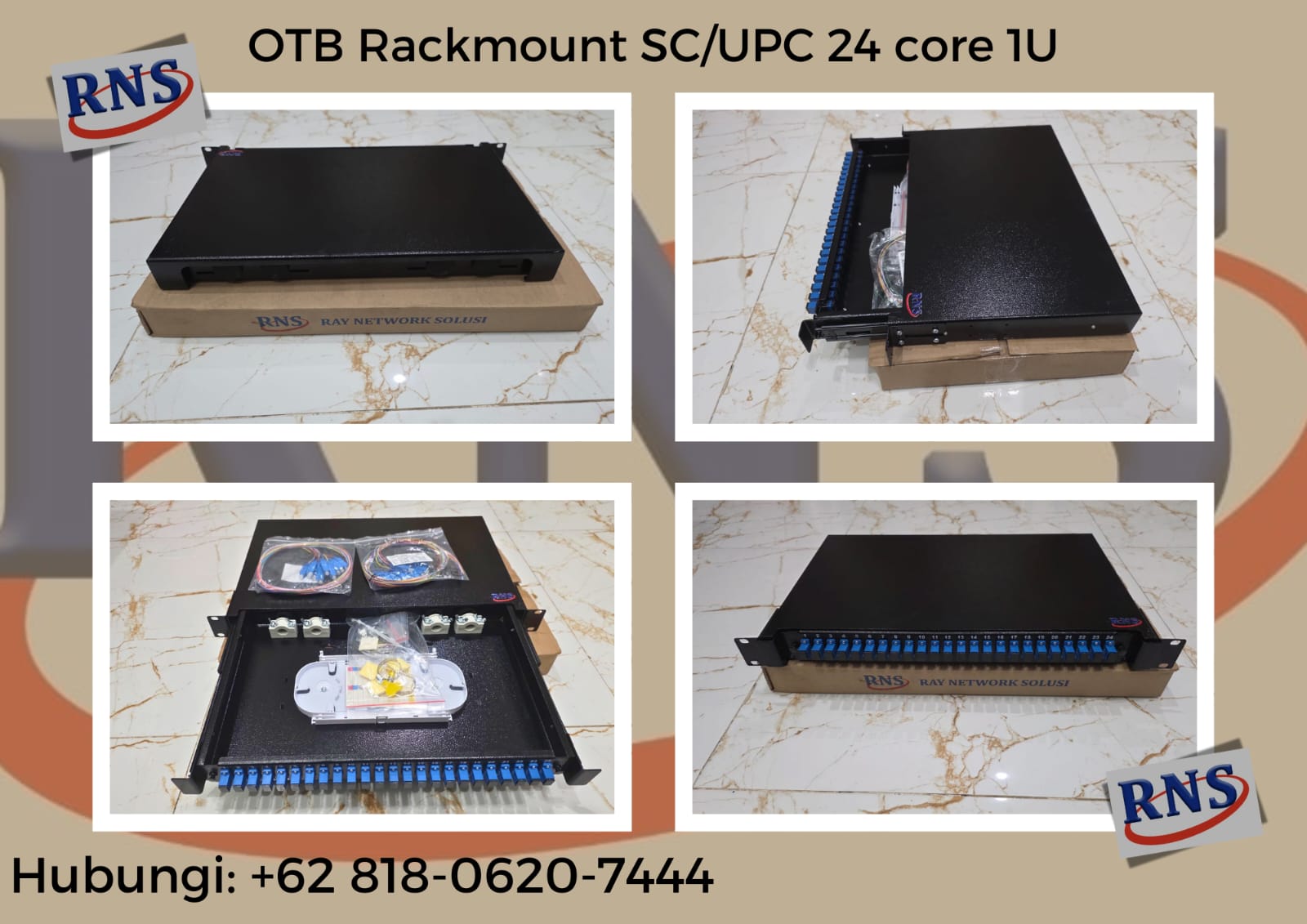

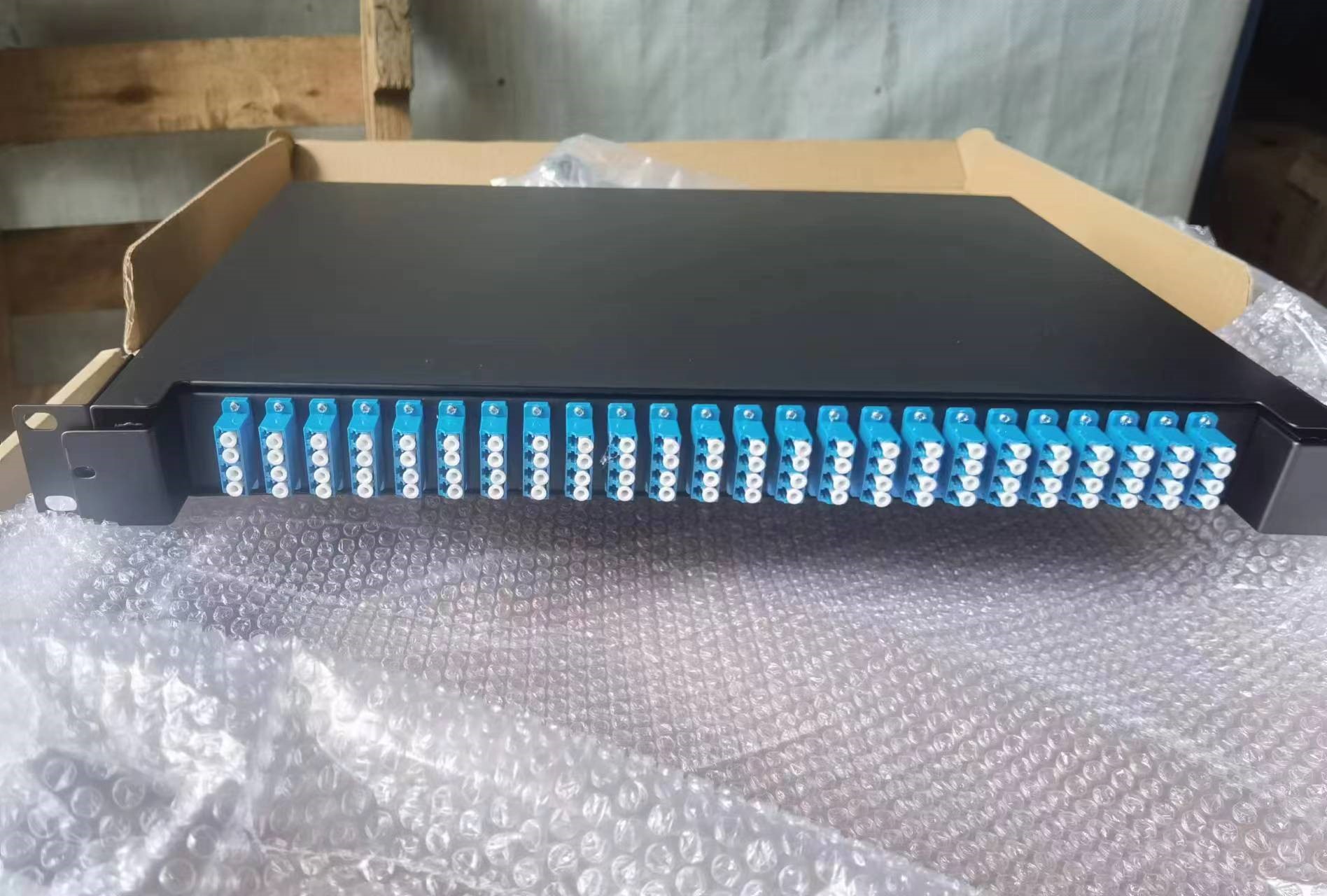

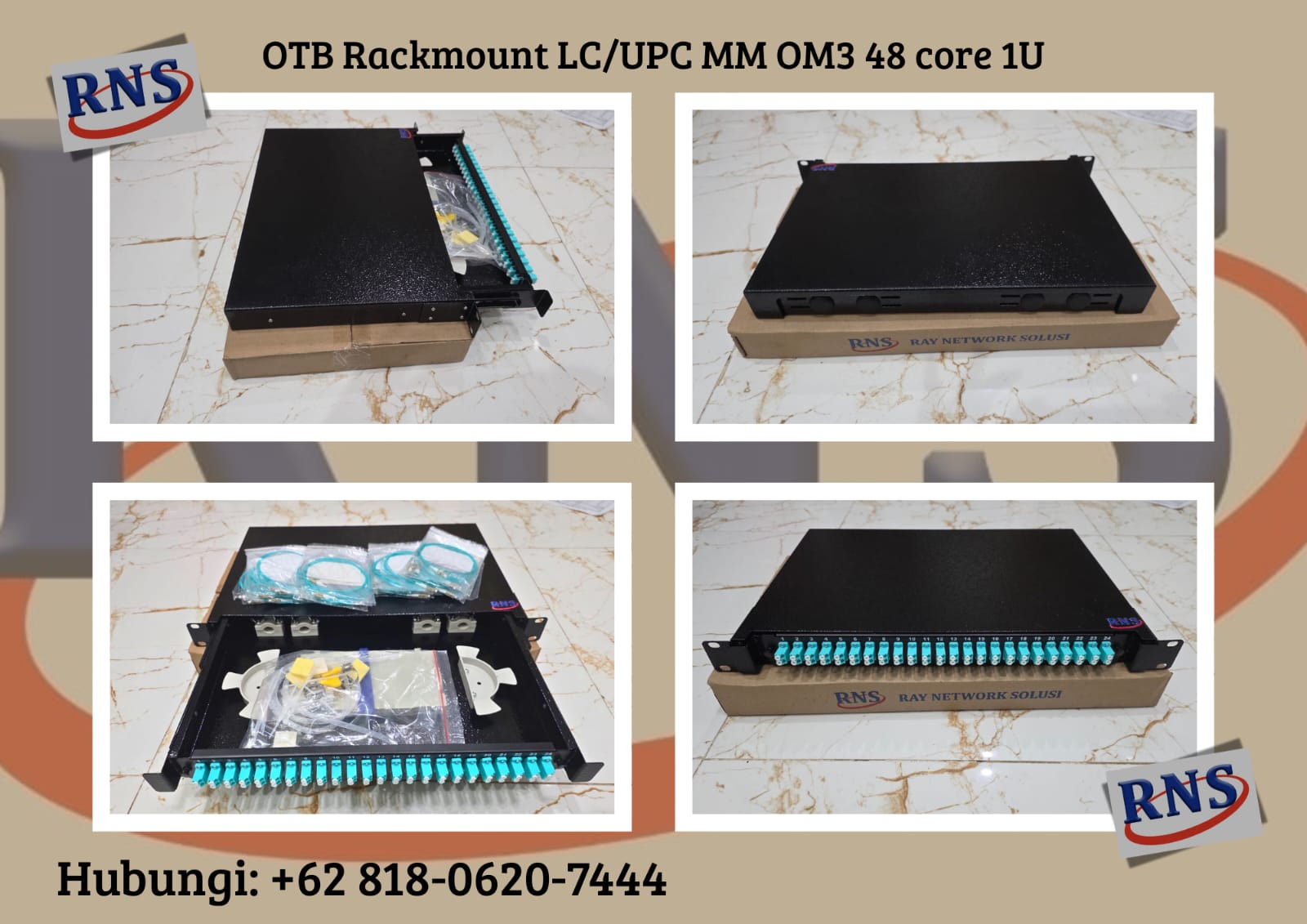

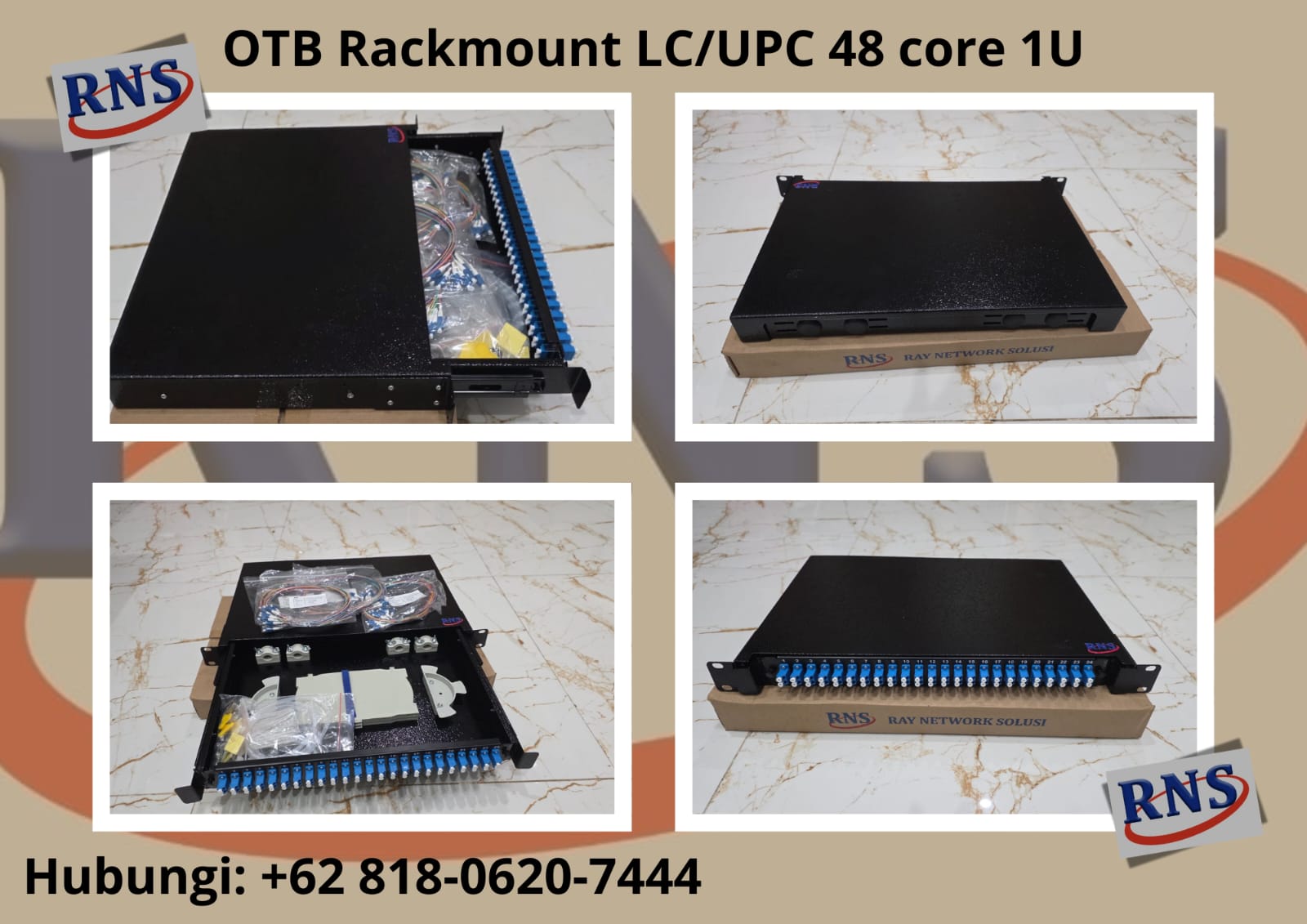

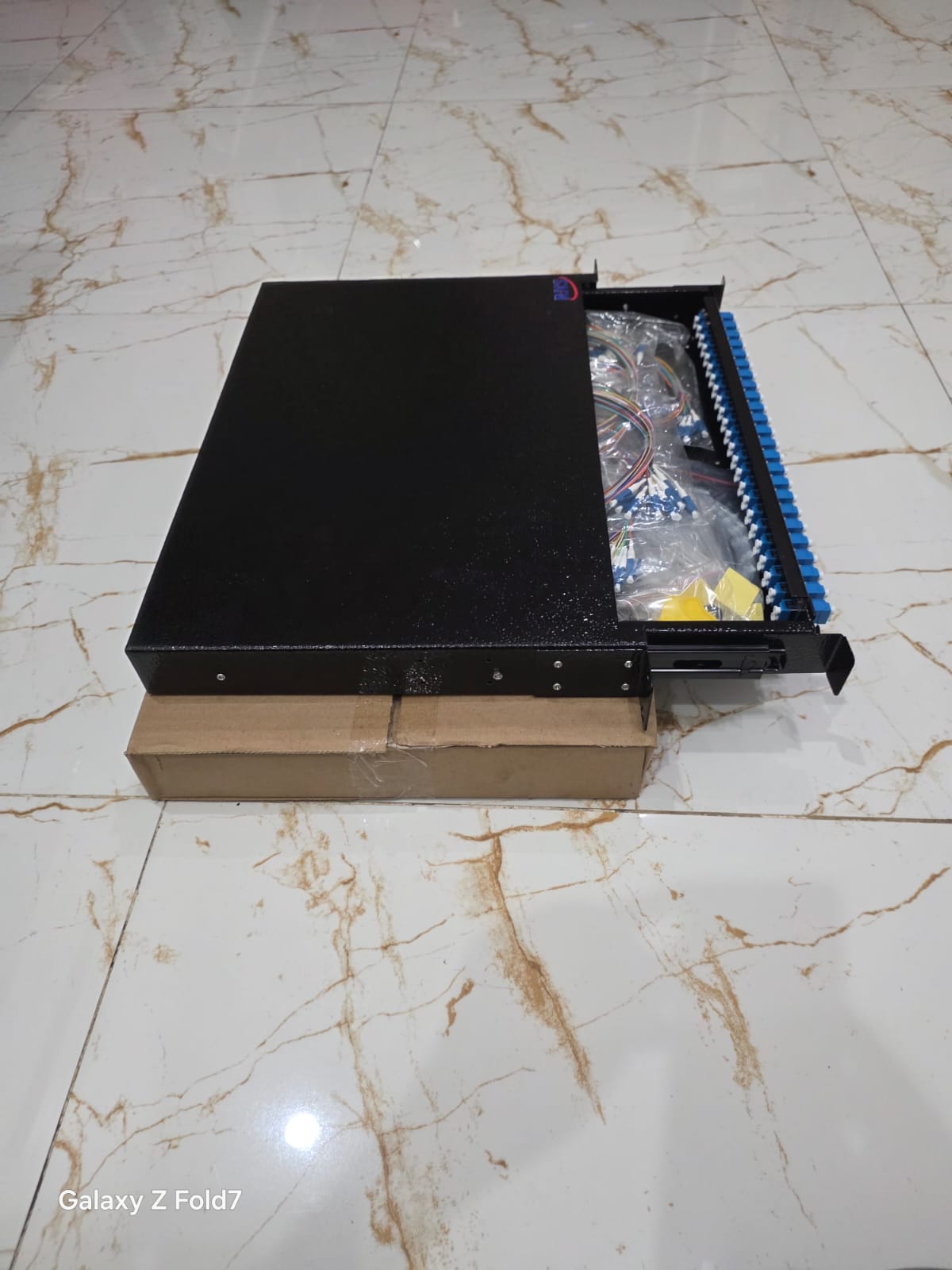

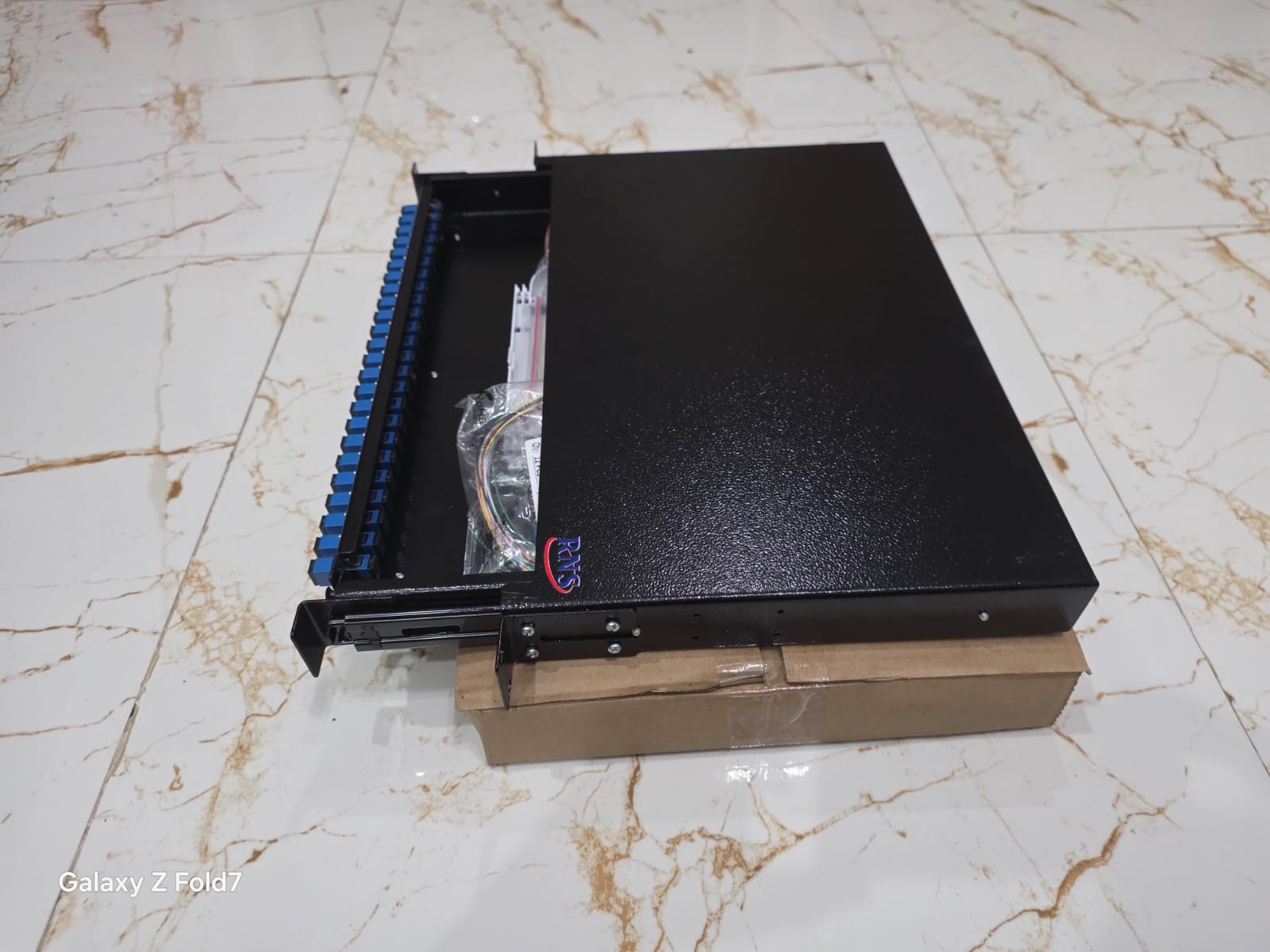

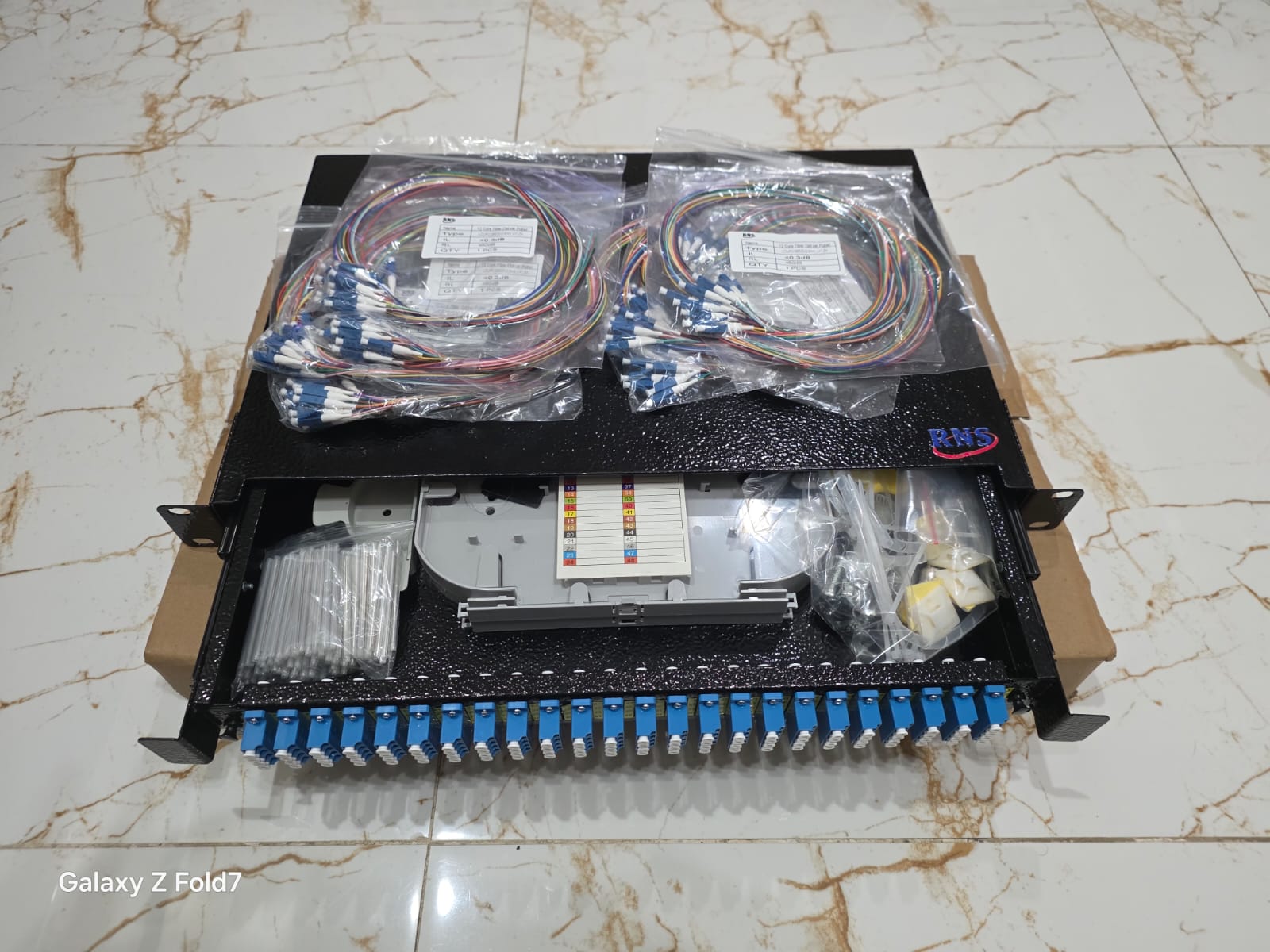

Description This product is applied to the branch connection of optical cable terminal, 19 “standard structure, rack-mounted installation, suitable for LC adapters, Features: 1) All the performance indexes meet the requirements of National YD/ T925-2004 Standard. 2) The body is made of high-quality cold-rolled steel, the surface is treated with matte spray technology with strong adhesion, artistic and durable; the internal fiber splice tray is made of high strength engineering plastics. 3) The unique design of 1 ~ 4 cable inlets and 1 ~ 96 core fiber outlets enhance the flexibility of use. 4) The cable inlets and fiber outlets are sealed with oil resistant nitrile rubber. Users can choose the inlet according to their needs, outlet should be punctured to use. which ensures the box is sealed. 5) Overlying fiber trays and independent insulation grounding device make the fiber core capacity expansion and cable grounding flexible, convenient and safe.

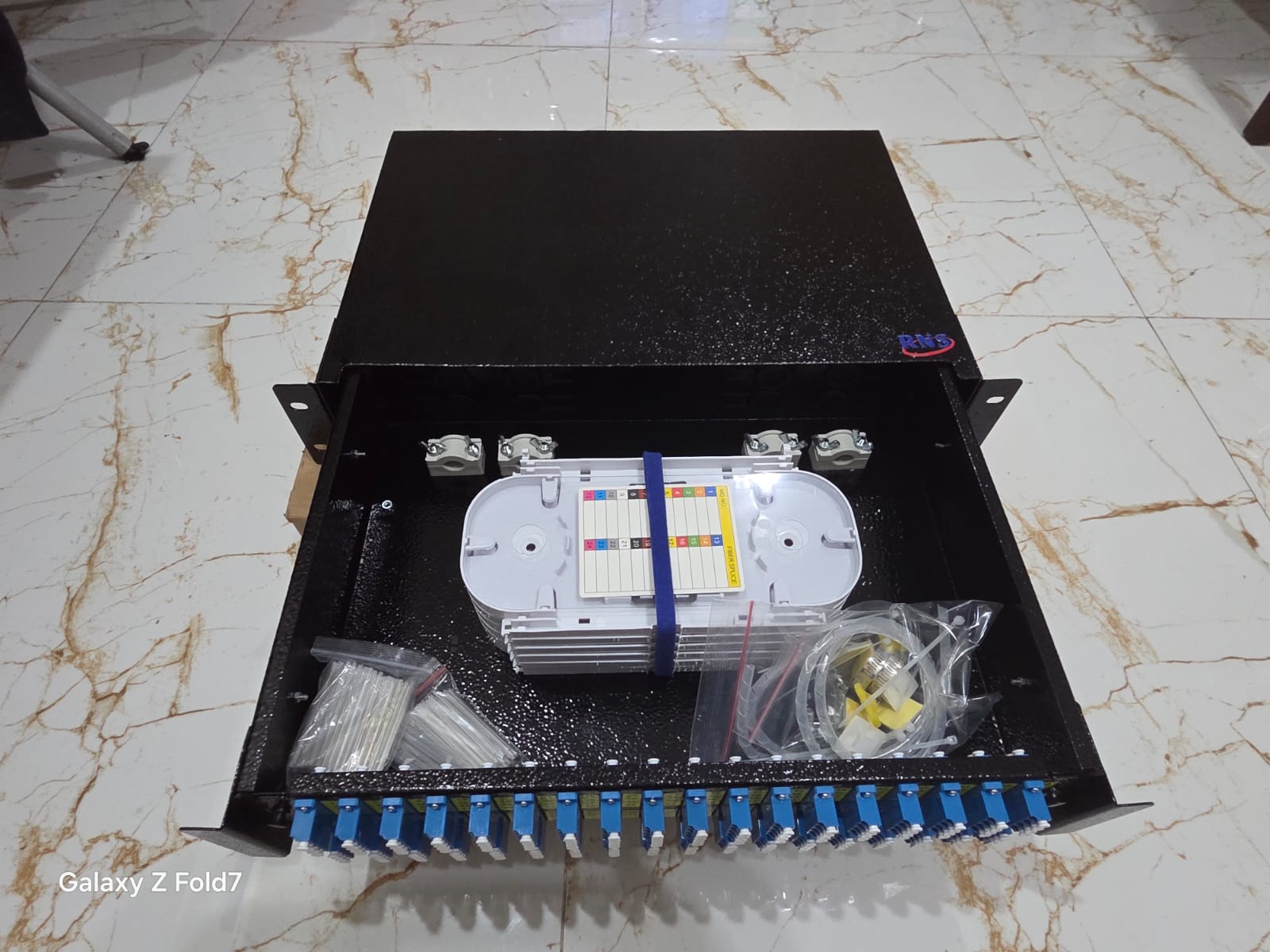

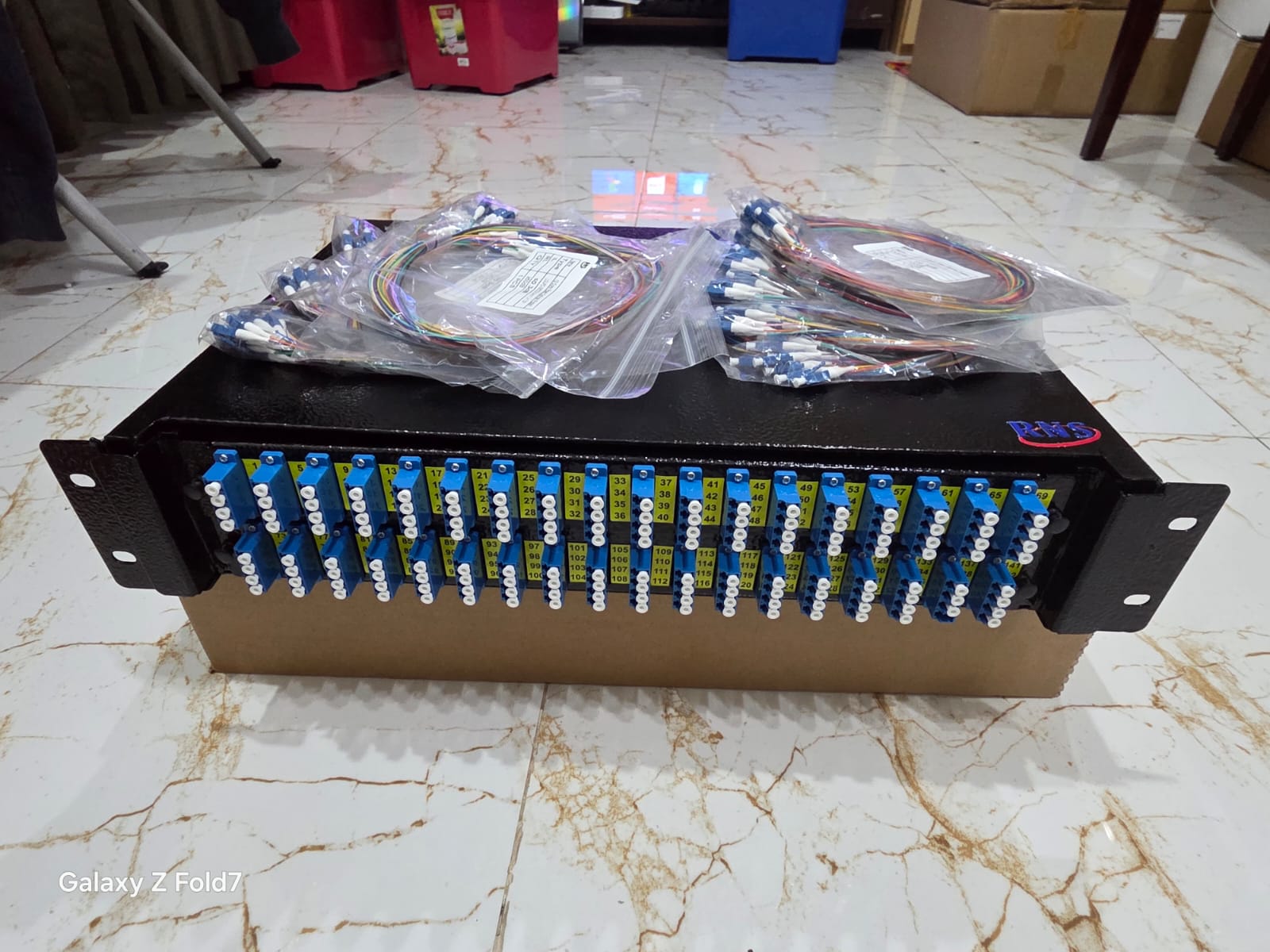

Description : This product is applied to the branch connection of optical cable terminal, 19 “standard structure, rack-mounted installation, suitable for LC adapters, Main Feature : 1) All the performance indexes meet the requirements of National YD/ T925-2004 Standard. 2) The body is made of high-quality cold-rolled steel, the surface is treated with matte spray technology with strong adhesion, artistic and durable; the internal fiber splice tray is made of high strength engineering plastics. 3) The unique design of 1 ~ 4 cable inlets and 1 ~ 144 core fiber outlets enhance the flexibility of use. 4) The cable inlets and fiber outlets are sealed with oil resistant nitrile rubber. Users can choose the inlet according to their needs, outlet should be punctured to use. which ensures the box is sealed. 5) Overlying fiber trays and independent insulation grounding device make the fiber core capacity expansion and cable grounding flexible, convenient and safe.

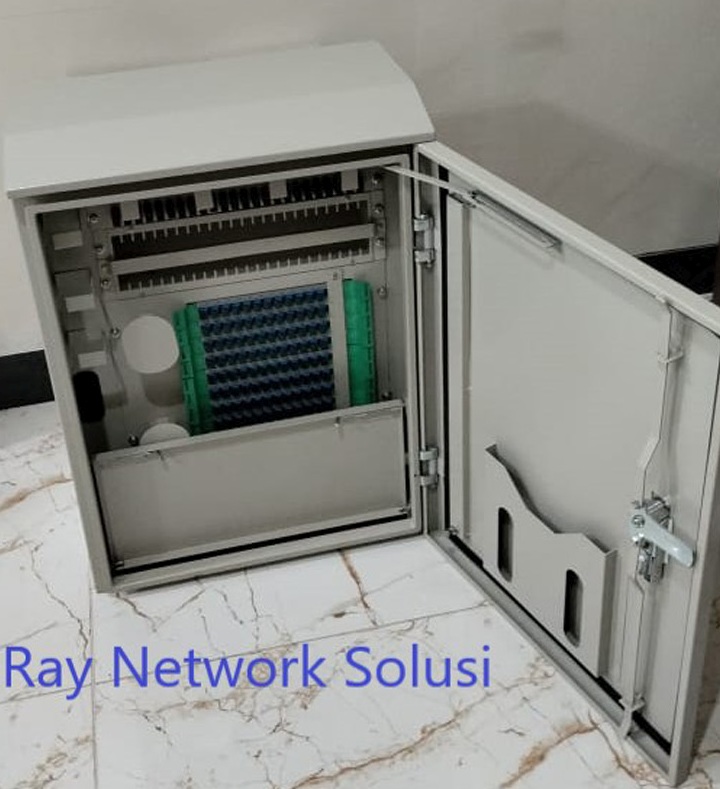

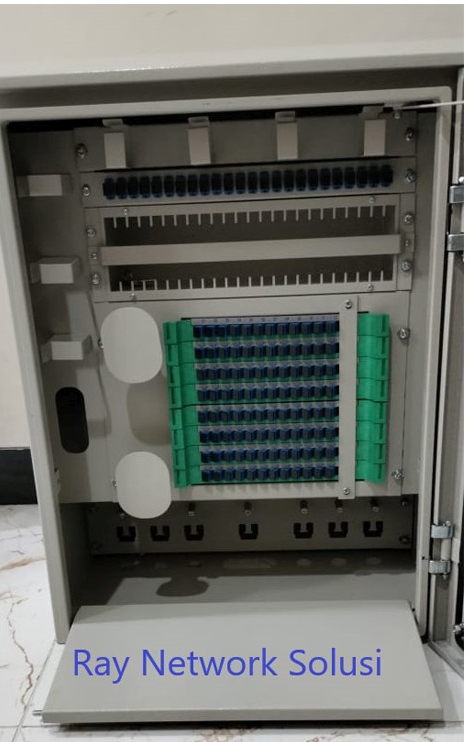

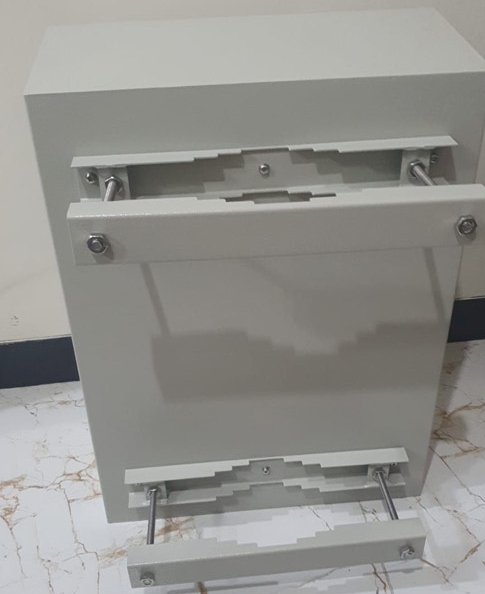

Description Optical Cross Connect Cabinet, short for OCC, is specially designed for optical fiber cross connection and termination between trunk cables and distribution cables in FTTH network.Optical Cross Connect Cabinet is also used for the housing of fiber optic splitters in outside plant applications. Optical Cross Connect Cabinet realizes fiber fixation, splicing, termination, reservation, distribution, patching and splitting. Features

• Specialization: Technical professionals and production/testing equipment ensure excellent product performance.
• Standardization: We strictly follow industry standard and actively participate in the modification of industry specifications. Innovation: For 12 fibers Splice and Distribution Integrated Trays and outdoor cross-connect cabinet, we improve our products according to customers’ needs.
• Humanization: Products are of humanized management and operation, and detail-orientation. The comers of the cabinet are formed by using arc shaping mold with its surface electrostatic spraying.
• Systematization: Products of various capacities can meet multiple application requirements. We also offer optical accessories for outdoor cross-connect cabinet, patch cords, pigtails, adapters, splitters for example, and provide turnkey solutions for installation, splicing, and testing
• Modular design: 12 fibers Splice and Distribution Integrated Trays and splitter trays are adopted for easy installation and maintenance. All components are in the form of modules to achieve flexible configuration. Components of different models are interchangeable, which shortens delivery time, reduces costs, and simplifies installation and maintenance

Specification:

• Housing material : SPCC
• Splice & distribution tray capacity : 8 pieces of SC, FC or ST adaptors (8 fibers); 12 pieces of duplex LC adaptors (16 fibres)
• Splice & distribution tray quantity : 8 pieces max
• Applicable adaptor : SC, FC (duplex LC or ST is optional)
• Adaptor quantity : 96 pieces max
• Direct splice capacity : 48 fibers, 24 fibers/tray (can be specified)
• Installation method : Floor standing (wall/pole mount is optional)
• Application environment : outdoor
• Protection grade : IP54
• Color : gray
• Dimension (H*W*D) : 675*480*300 mm

Gallery :

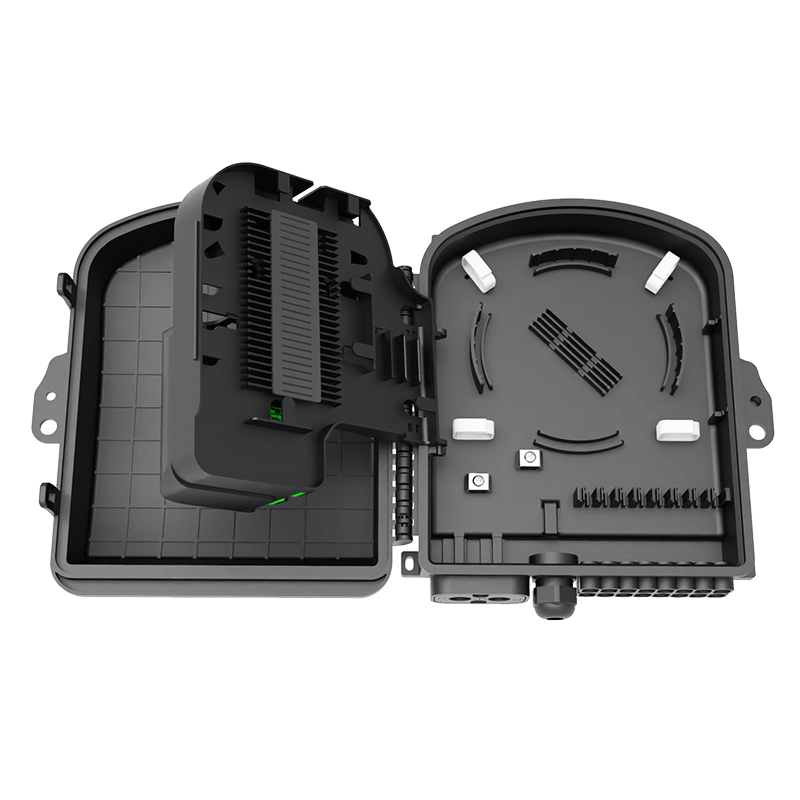

Description: FSP-P-24N-D Fiber Distribution Box is is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building. Specification

• Anti-UV (Ultraviolet).
• Fit the cable diameter ranged from 8mm to 13mm.
• Fit cord cable/ patch cord / drop fibre output.
• Easy to maintain and extend the capacity.
• Fiber bend radius control more than 30mm.

Applications

• FTTH access network
• Telecommunication network
• CATV networks
• Data communications network
• Local area networks

Configuration

• Model : FSP-P-24N-D
• Installation Method : Wall Mounted/Pole Mounted
• Color : Black/Gray
• Material : PC+ABS
• Capacity Of Splicing : 32 Cores
• Adapter Capacity : 24 Ports
• Adapter Type : SC
• IP Grade : IP 65

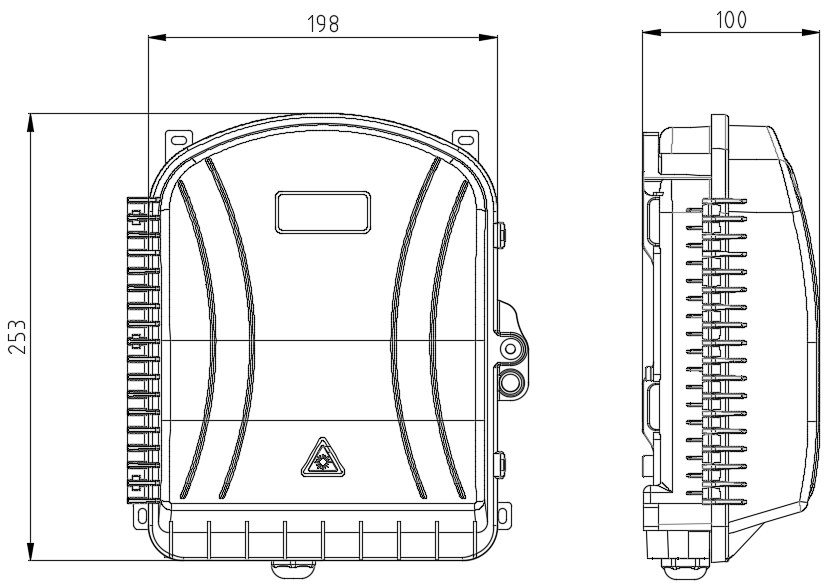

• Size: H×W×D (mm) (Pic 1) :  253×198×100 (MM)

Pic 1

  Routing (Pic 2 ~ 3)

Pic 2 Lower Of Turntable



Pic 3 Top View Of Turntable

  Installation Drill 4 holes in the wall according to the installation size, place the expansion bolt, place the mounting plate to match up the holes and use bolt to fasten. Fix the box and the mounting plate with screws from the inside of the box (Pic 4) .

Pic 4

  Pole-mounted installation Fix 1 set of the hose clamps to the telecom pole .（Pic 5）

Pic 5

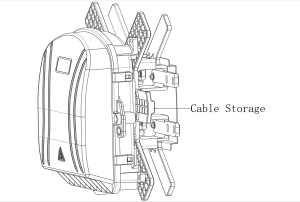

Cable storage installation(optional function) Adjust the spacing of cable storage and use screws to secure the box to cable storage.（Pic 6）

Pic 6

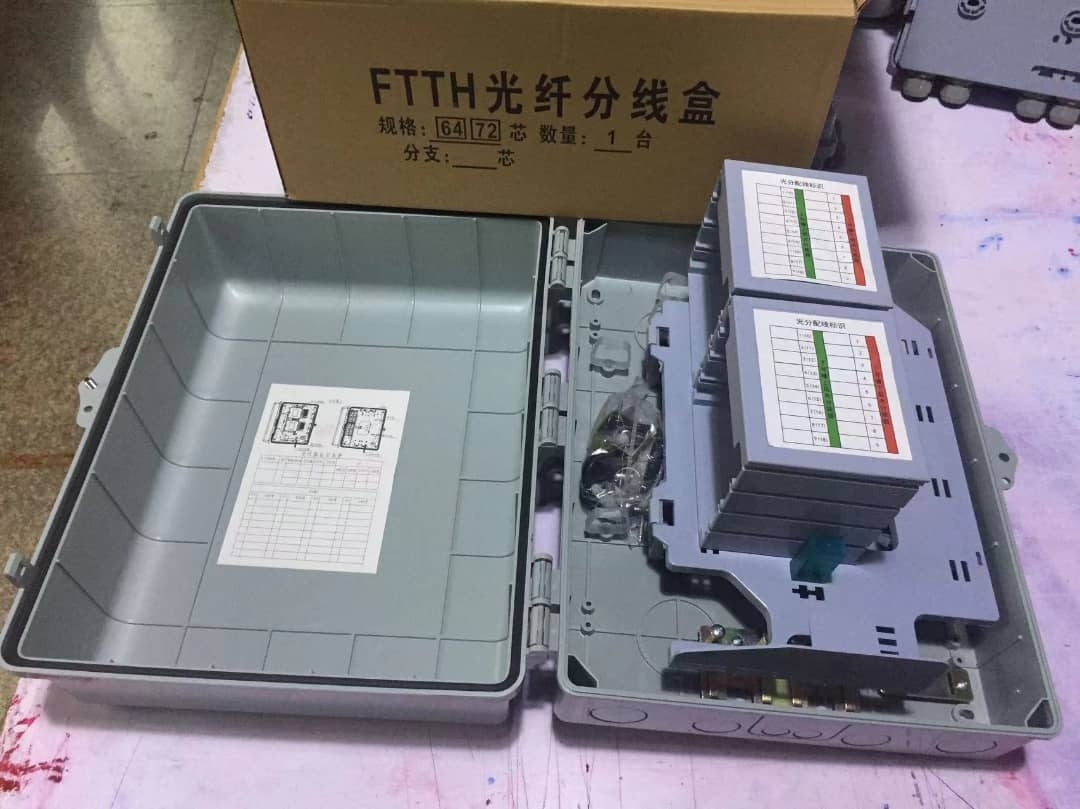

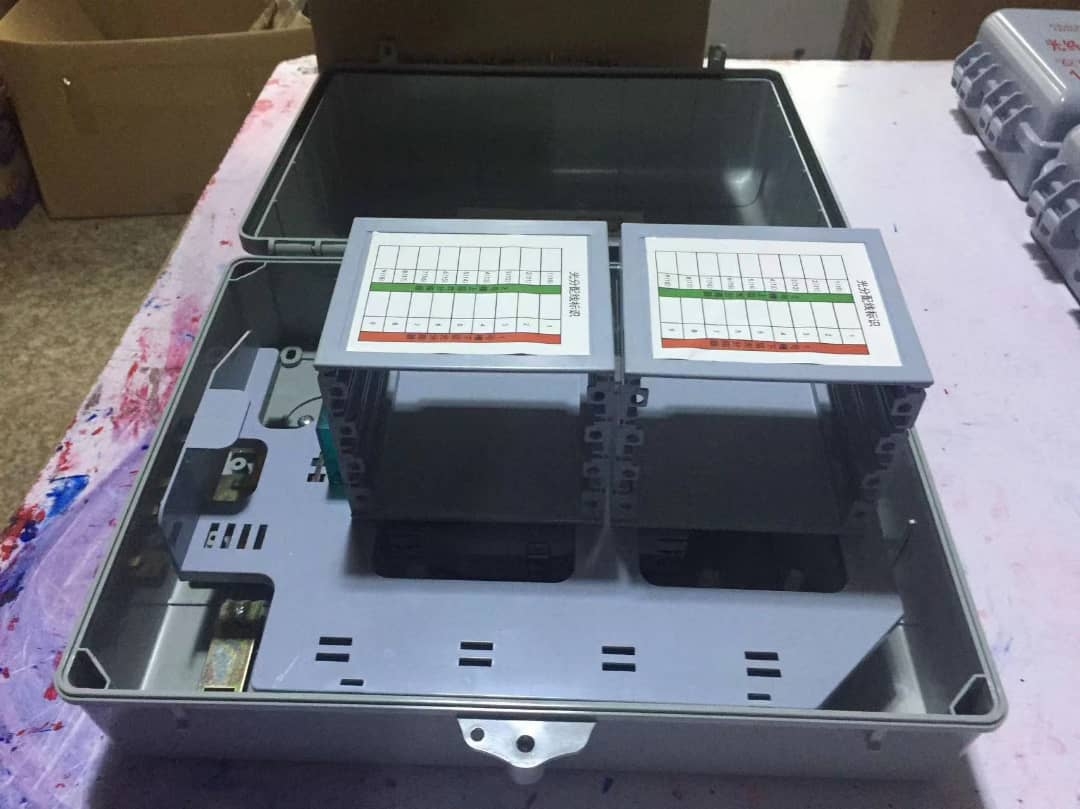

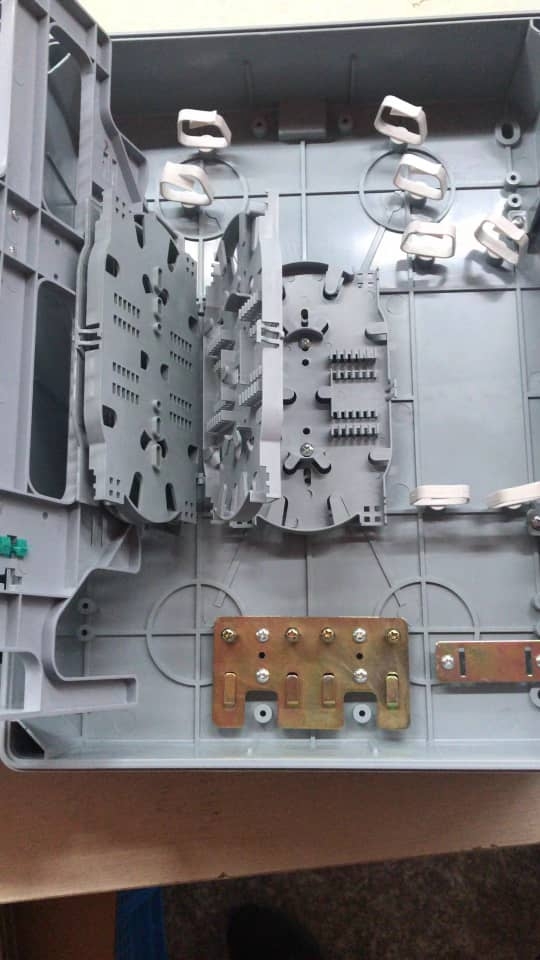

Description: The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building Specification

• Environmental Requirement
• Working temperature : -40C +85C
• Relative humidity : <=85% (+30 C)
• Atmospheric Pressure : 70Kpa – 106 Kpa

Model & Configuration

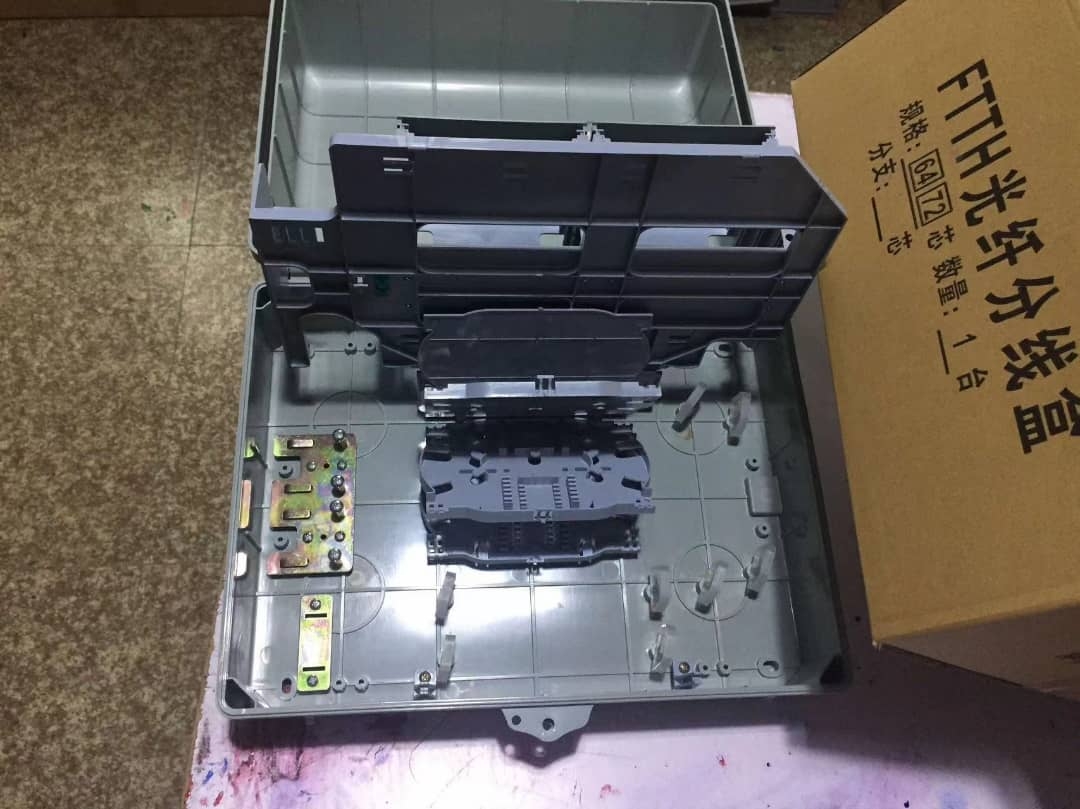

• Model No : 64 Core
• Max Capacity : 72 core for mini plc splitter
• Material : Sub-fiber, splitter box, ABS
• Size : 420x356x185 mm

Gallery:

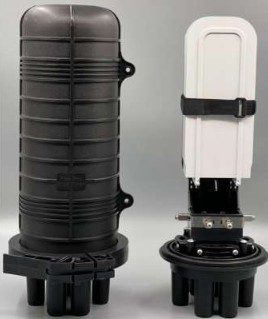

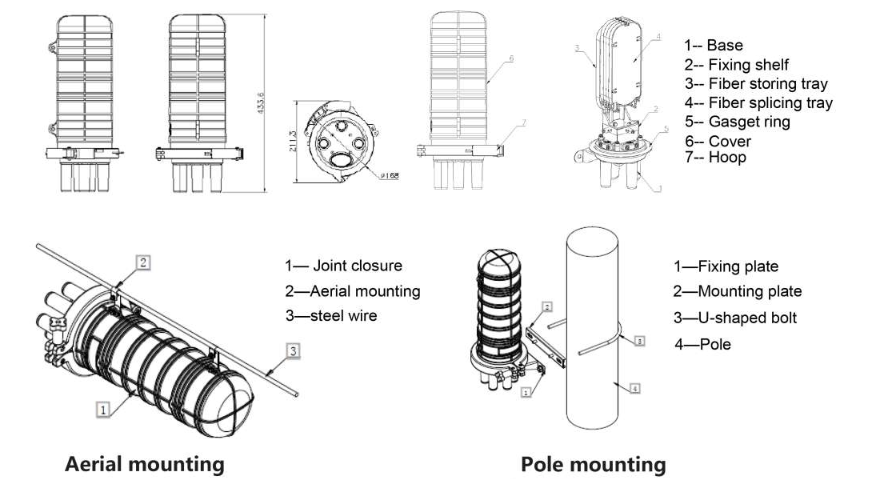

Description Optical splice closures are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the closure. There are two connection ways: direct connection and splitting connection. They are applicable to situations such as overhead, man well of pipeline, embedded situation etc. Comparing with terminal box, the closure requires much stricter requirement of seal. Sealing ring and air valve are required for closure, but that are not necessary for terminal box. Features

1. The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
2. The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment. The protection grade reaches IP68.
3. The closures are applicable to ribbon type optical cable and common optical cable.
4. The splice trays inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40mm.Each optical cable and fiber can be operated individually.
5. The closure is of small volume, big capacity and convenient maintenance. The elastic rubber seal rings inside the closure are of good sealing and sweat-proof performance.
6. The casing can be opened repeatedly without air leakage. No special tools

Standard Accessories

• Tag paper:1pcs
• Sand paper :1pcs
• Silver paper :1pcs
• Cleaning tissue：1pcs
• Insulating tape：1pcs
• Cable tie:3mm*10mm 8pcs
• Fiber protective tube： 1 pcs
• Heat-shrink sleeve:1.0mm*3mm*60mm 96\144pcs
• Heat shrink tubing:1 bag
• Pole accessories:1 pcs（Optional Accessories ）
• Pressure testing valve：1pcs （Optional Accessories ）
• Earthing deriving devicepcs：1pcs（Optional Accessories ）

Dimensions and Capability

• Dimensions (D*H) : 420mm*205mm
• Max Capacity : 144 Cores
• Number of Cable Entrance/Exit : 1:4
• Diameter of Cable : 4 small round ports(21mm) and 1 large oval port(58mm)

Operation Conditions

• Temperature : -40℃~+60℃
• Humidity : ≤95% (at 40℃)
• Air Pressure : 70kPa ~106kPa

Technical Spesification

• Seal performance: after the box is sealed, inflate to 100kPa inwards (inflation only apply to the models with the air hole), and then soak it in the water of normal temperature, after 15 minutes of steady observation, there is no bubble to overflow.
• Insulation resistance: the insulation resistance between the metal work piece and the earth is greater than 20kMΩ.
• Pressurization: there is no breakdown or flash over under 15kVdc/1min between the metal work piece and the earth.
• The curvature radius of the fiber 40mm, without extra loss inside the splice tray.
• It can bear the axial tensile strength no less than 1000N.
• Lifetime: 25 years.
• Other performances are all in accordance with the requirement of standard YD/T814-1998.

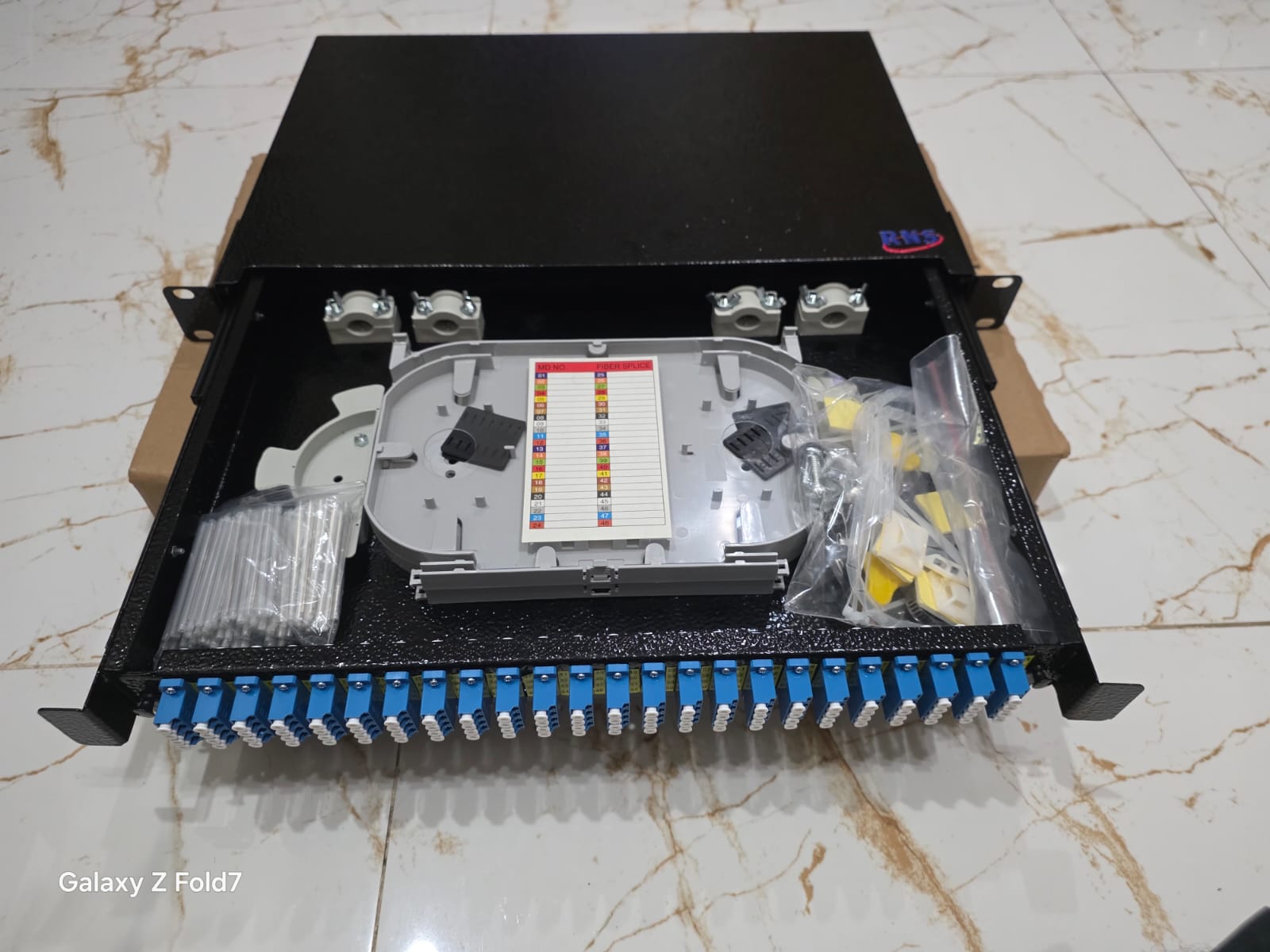

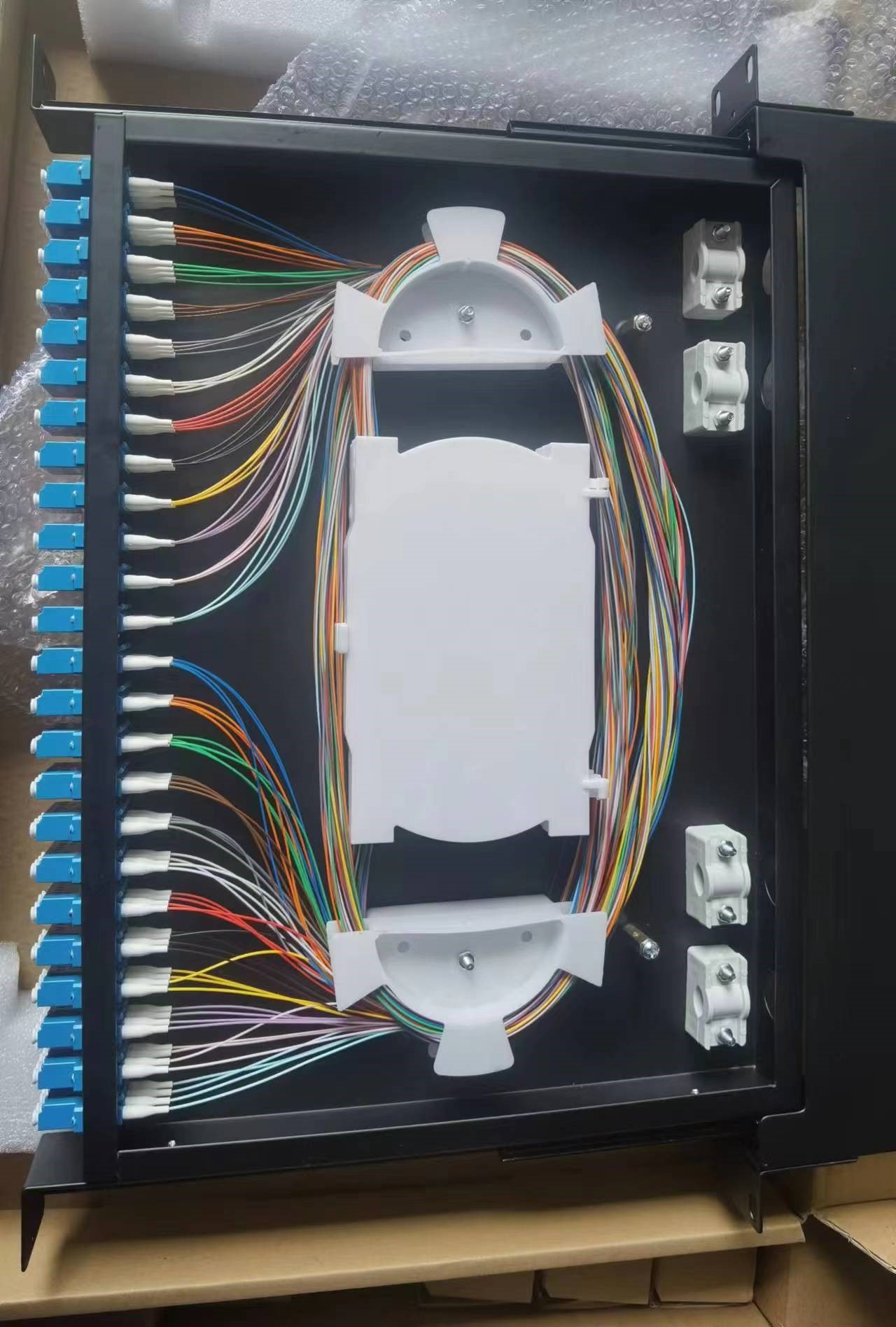

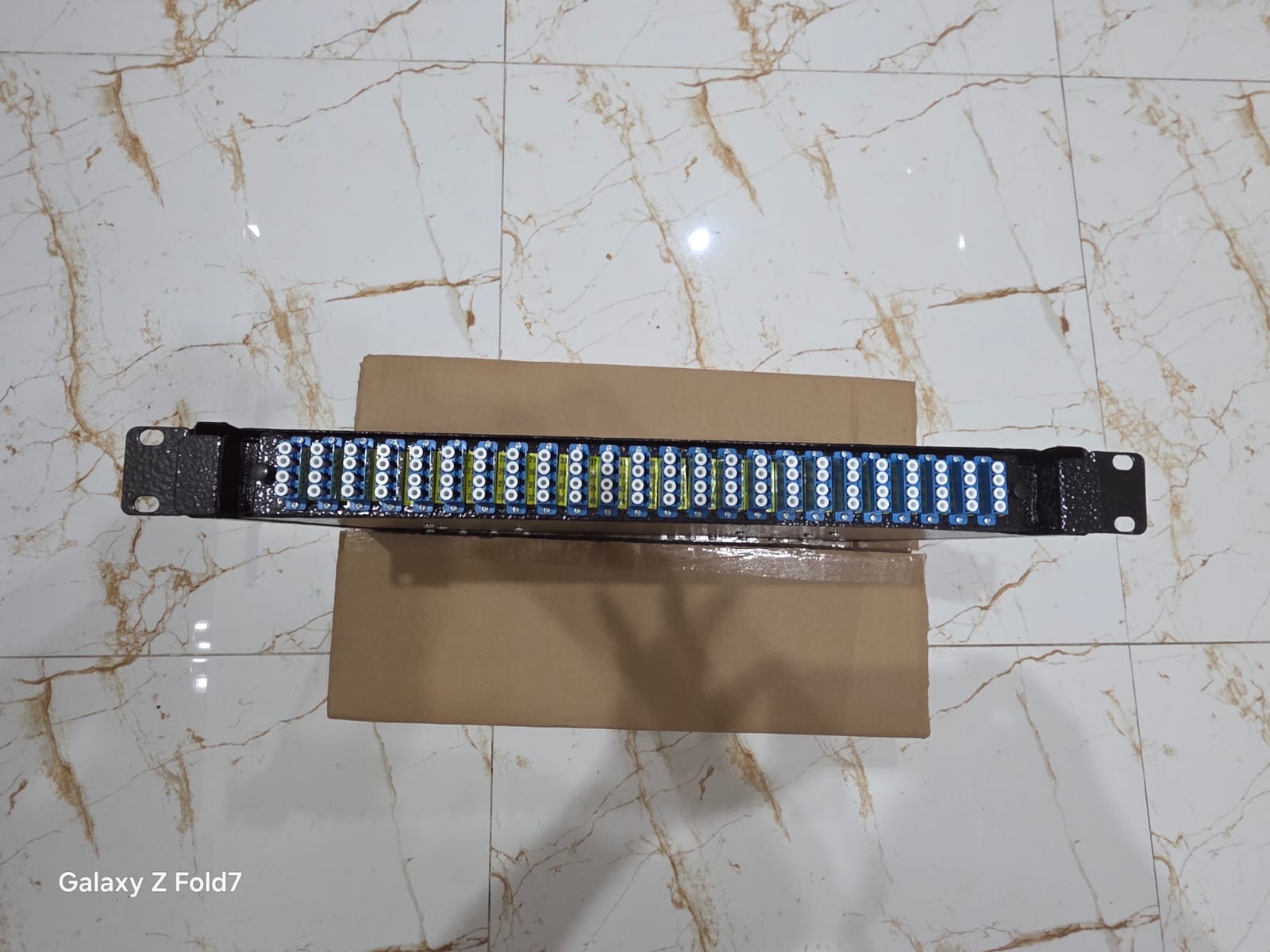

Description: This product is applied to the branch connection of optical cable terminal, 19 “standard structure, rack-mounted installation, suitable for LC adapters,   Main Features

1. All the performance indexes meet the requirements of National YD/ T925-2004 Standard.
2. The body is made of high-quality cold-rolled steel, the surface is treated with matte spray technology with strong adhesion, artistic and durable; the internal fiber splice tray is made of high strength engineering plastics.
3. The unique design of 1 ~ 4 cable inlets and 1 ~ 96 core fiber outlets enhance the flexibility of use.
4. The cable inlets and fiber outlets are sealed with oil resistant nitrile rubber. Users can choose the inlet according to their needs, outlet should be punctured to use. which ensures the box is sealed.
5. Overlying fiber trays and independent insulation grounding device make the fiber core capacity expansion and cable grounding flexible, convenient and safe.

Spesification:

• Type: LC/UPC 96
• Dimension (mm) : 482 & 250 * 44

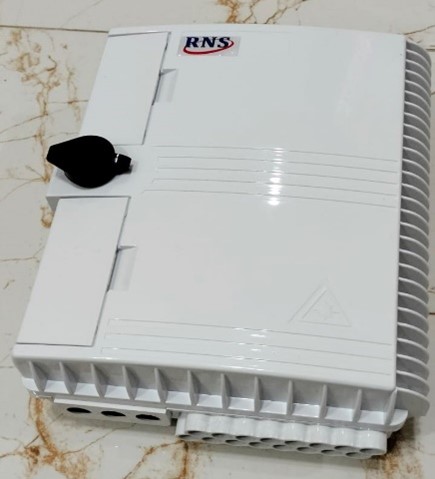

Terminal akses serat (FAT) adalah perangkat yang digunakan untuk pemasangan kabel serat dan manajemen kabel dalam aplikasi FTTH. Perangkat ini mengintegrasikan penyambungan, pemisahan dan penyaluran serat sekaligus memberikan perlindungan & kontrol untuk pemasangan jalur jaringan.

FAT 24 Core 3in 24Out



FAT 16 Core 3in 16Out

Description :

Outdoor wall type fiber optic distribution frame is mainly used for connecting the outdoor optical cables, optical patch cord and optical pigtails. It is made of cold-rolling steel sheet, static spreading-plastic, small dimension and exquisite, easy for operation. It can be wall mounted or pole mounted, and facilitates the test and refit of the lines.

Features

1. With steel plates can manage both single fiber and ribbon & bundle fiber cables
2. FC, LC, SC, ST output interfaces optional
3. Large working space to integrate the pigtail, cables and adapters
4. Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite, easy for operation
5. Special design ensures the excess fiber cords and pigtails in good order

Application

1. Telecommunications subscriber loop
2. Fiber to the home (FTTH)
3. LAN/ WAN
4. CATV

Spesification

Item	Value
Type	Fiber Optic distribution terminal
Use	FTTH / FTTX Project
Material	Metal with powder coating
Port	48 to 72 port
Color	Grey
Product Size	490 * 440 * 150 mm
Installation Type	Wall or pole mount
Maximum splitter space	1×8 (8 pcs), 1×4 (8 pcs)
Indeks Proteksi	IP 54

Gallery
